Running VLM analysis in CADDEE
In this example we show the steps required to use the vortex lattice method on the C172 geometry from the previous tutorials. We perform a grid convergence study of the number of chord-wise VLM panels (for the wing) and generate lift and (induced) drag polars.
Note
We can generate two different kinds of discretizations for VLM analysis
A flat lattice/chord surface
A camber surface
Flat chord surfaces are easier and cheaper to project onto the central geometry. However, for cambered airfoils, the VLM analysis needs to be augmented with an airfoil model that is embedded span-wise to account for lift at zero angle of attack. This effectively shifts the lift curve slope of the flat chord surface. One advantage of this approach is that for simple geometries, no more than chord-wise panel is needed, which can save memory.
Camber surfaces are more difficult to project. They are generated by projecting the flat chord surface onto the upper and lower wing surface and taking the average. One advantage of the camber surface is that for sufficiently refined meshes (chord-wise), the lift at zero angle of attack can be computed with reasonable accuracy for thin airfoils. To capture the curvature at the leading edge, the mesh nodal coordinates can be skewed toward the leading edge with cosine spacing. Downsides to using camber surfaces is difficulty with projection quality and projection time and increased memory costs as a higher number of chordwise panels is required to track the camber line.
In this tutorial we use both approaches.
We introduce a new code struture that we suggest as a template for longer run scripts. For this tutorial, this means writing three functions:
define_base_configdefine_conditionsdefine_analysis
In addition to importing CADDEE_alpha and CSDL_alpha as in the previous examples, we also import the aerodynamic solver module VortexAD, which provides the VLM implementation in CSDL as well as lsdo_airofil, a module for subsonic, machine learning based airfoil analysis.
import CADDEE_alpha as cd
import csdl_alpha as csdl
import numpy as np
import matplotlib.pyplot as plt
from lsdo_airfoil.core.three_d_airfoil_aero_model import ThreeDAirfoilMLModelMaker
from VortexAD.core.vlm.vlm_solver import vlm_solver
from vedo import settings
# ensuring the vedo plots appear for jupyter notebook (not needed for regular .py file)
settings.default_backend = "vtk"
# Start the CSDL recorder
recorder = csdl.Recorder(inline=True, expand_ops=True)
recorder.start()
# import C172 geometry
c172_geom = cd.import_geometry("c172.stp")
# c172_geom.plot()
# make instance of CADDEE class
caddee = cd.CADDEE()
Importing OpenVSP file: /home/marius/Desktop/packages/lsdo_lab/CADDEE_alpha/CADDEE_alpha/utils/../../examples/test_geometries/c172.stp
Defining the base configuration
The define_base_config function builds the component hierarchy and defines the meshes for the analysis. We make several VLM meshes with different chord-wise discretizations of the wing, starting with one chord-wise panel, which reduces the analysis to lifting-line theory, and increase the number of chord-wise panels in increments of four up to 20. We keep the number of spanwise panels fixed at 30
def define_base_config(caddee : cd.CADDEE):
"""Build the system configuration and define meshes."""
# Make aircraft component and pass in the geometry
aircraft = cd.aircraft.components.Aircraft(geometry=c172_geom, compute_surface_area=False)
# instantiation configuration object and pass in system component (aircraft)
base_config = cd.Configuration(system=aircraft)
# Make wing geometry from aircraft component and instantiate wing component
wing_geometry = aircraft.create_subgeometry(search_names=["MainWing"])
wing = cd.aircraft.components.Wing(AR=7.72, S_ref=16.23, taper_ratio=0.73, geometry=wing_geometry)
# Assign wing component to aircraft
aircraft.comps["wing"] = wing
# Make horizontal tail geometry component
h_tail_geometry = aircraft.create_subgeometry(search_names=["HTail"])
h_tail = cd.aircraft.components.Wing(AR=3.83, S_ref=4.04, taper_ratio=0.60, geometry=h_tail_geometry)
# Assign tail component to aircraft
aircraft.comps["h_tail"] = h_tail
mesh_container = base_config.mesh_container
# Tail
tail_chord_surface = cd.mesh.make_vlm_surface(
wing_comp=h_tail,
num_chordwise=1,
num_spanwise=10,
)
# Wing chord surface (lifting line)
wing_chord_surface = cd.mesh.make_vlm_surface(
wing_comp=wing,
num_chordwise=1,
num_spanwise=30,
)
vlm_mesh_0 = cd.mesh.VLMMesh()
vlm_mesh_0.discretizations["wing_chord_surface"] = wing_chord_surface
vlm_mesh_0.discretizations["h_tail_chord_surface"] = tail_chord_surface
# plot meshes
# c172_geom.plot_meshes(meshes=[wing_chord_surface.nodal_coordinates.value, tail_chord_surface.nodal_coordinates.value])
# Assign mesh to mesh container
mesh_container["vlm_mesh_0"] = vlm_mesh_0
# Wing camber surfaces
num_chord_wise_panels = [4, 8, 12, 16, 20]
for i in range(5):
wing_camber_surface = cd.mesh.make_vlm_surface(
wing_comp=wing,
num_chordwise=num_chord_wise_panels[i],
num_spanwise=30,
)
vlm_mesh = cd.mesh.VLMMesh()
vlm_mesh.discretizations[f"wing_camber_surface_{i}"] = wing_camber_surface
vlm_mesh.discretizations[f"h_tail_chord_surface_{i}"] = tail_chord_surface
# plot meshes
c172_geom.plot_meshes(meshes=[wing_camber_surface.nodal_coordinates.value, tail_chord_surface.nodal_coordinates.value])
# Assign mesh to mesh container
mesh_container[f"vlm_mesh_{i+1}"] = vlm_mesh
# Assign base configuration to CADDEE instance
caddee.base_configuration = base_config
Defining the analysis/design conditions
The define_conditions is straightforward and simply defines the operating conditions. In this tutorial, we only consider one analsis condition, cruise, for which we use the CruiseCondition. To generate the lift and drag polars, we define a range of pitch angles for a fixed altitude, range and mach number. This will serve to vectorize the VLM analysis.
Note
In this tutorial, we only have one analysis condition and could simply assign the base_configuration as the configuration of the cruise condition. However, in general we may have more than one condition and we typically create copies of the base configuration. We use the copy method method to create a copy of the base configuration.
Lastly, we assign the cruise condition to the conditions dictionary stored in the CADDEE instance.
def define_conditions(caddee: cd.CADDEE):
conditions = caddee.conditions
base_config = caddee.base_configuration
cruise = cd.aircraft.conditions.CruiseCondition(
altitude=10,
range=100,
pitch_angle=np.linspace(np.deg2rad(-10), np.deg2rad(16), 27),
mach_number=0.18,
)
cruise.configuration = base_config.copy()
conditions["cruise"] = cruise
Defining the analysis
The define_analysis function performs the actual analysis by using the VLM solver from the VortexAD module imported at the beginning. We perform VLM analysis for each of the meshes created and overlay the lift and drag polars on one plot.
For the flat chord surface with one chord-wise panel, we augment the VLM analysis with a 3-D airfoil model. This is done by rotating the flow at each spanwise set of nodal coordinates by the angle of attack that produces zero lift, based on the local Reynolds number and the free stream Mach number. For this tutorial, we have given the C172 geometry a NASA Langley GA airfoil, for which we have trained a 3-D machine learning model based on XFOIL data.
The first steps in this funcion involve accessing the cruise condition and the discretizations stored in the meshes. We then need to call the function finalize_meshes on the instance of the CruiseCondition. This will re-evaluate all meshes from their parametric coordinates, which is important if there are changes to the central geometry. In addition, finalize_meshes assigns the nodal velocities for each mesh, which are computed from the parameters of the cruise condition, body rotations, and dynamic mesh actuations. In this tutorial we do not consider body rotations are mesh actuations.
def define_analysis(caddee: cd.CADDEE):
cruise = caddee.conditions["cruise"]
cruise_config = cruise.configuration
mesh_container = cruise_config.mesh_container
# Get quantities for computing Cl, CDi
aircraft = cruise_config.system
wing = aircraft.comps["wing"]
S_ref = wing.parameters.S_ref
rho = cruise.quantities.atmos_states.density[0]
V = cruise.parameters.speed[0]
# Re-evaluate meshes and compute nodal velocities
cruise.finalize_meshes()
# Make an instance of an airfoil model
nasa_langley_airfoil_maker = ThreeDAirfoilMLModelMaker(
airfoil_name="ls417",
aoa_range=np.linspace(-12, 16, 50),
reynolds_range=[1e5, 2e5, 5e5, 1e6, 2e6, 4e6, 7e6, 10e6],
mach_range=[0., 0.2, 0.3, 0.4, 0.5, 0.6],
)
Cl_model = nasa_langley_airfoil_maker.get_airfoil_model(quantities=["Cl"])
# Analyses
CL_list = []
CDi_list = []
# -------------------Flat surface mesh-------------------
vlm_mesh_0 = mesh_container["vlm_mesh_0"]
wing_chord_surface = vlm_mesh_0.discretizations["wing_chord_surface"]
h_tail_chord_surface = vlm_mesh_0.discretizations["h_tail_chord_surface"]
lattice_coordinates = [wing_chord_surface.nodal_coordinates, h_tail_chord_surface.nodal_coordinates]
lattice_nodal_velocities = [wing_chord_surface.nodal_velocities, h_tail_chord_surface.nodal_velocities]
vlm_outputs_1 = vlm_solver(
lattice_coordinates,
lattice_nodal_velocities,
atmos_states=cruise.quantities.atmos_states,
airfoil_Cd_models=[None, None],
airfoil_Cl_models=[Cl_model, None],
airfoil_Cp_models=[None, None],
airfoil_alpha_stall_models=[None, None],
)
# We multiply by (-1) since the lift and drag are w.r.t. the flight-dynamics reference frame
total_induced_drag = vlm_outputs_1.total_drag * -1
total_lift = vlm_outputs_1.total_lift * -1
print("total lift: ", total_lift.value)
print("total induced drag: ", total_induced_drag.value)
CL_list.append(total_lift / 0.5 / rho / V**2 / S_ref)
CDi_list.append(total_induced_drag / 0.5 / rho / V**2 / S_ref)
# -------------------Camber surface meshes-------------------
for i in range(2):
vlm_mesh = mesh_container[f"vlm_mesh_{i+1}"]
wing_camber_surface = vlm_mesh.discretizations[f"wing_camber_surface_{i}"]
h_tail_chord_surface = vlm_mesh.discretizations[f"h_tail_chord_surface_{i}"]
lattice_coordinates = [wing_camber_surface.nodal_coordinates, h_tail_chord_surface.nodal_coordinates]
lattice_nodal_velocities = [wing_camber_surface.nodal_velocities, h_tail_chord_surface.nodal_velocities]
vlm_outputs = vlm_solver(
lattice_coordinates,
lattice_nodal_velocities,
atmos_states=cruise.quantities.atmos_states,
airfoil_Cd_models=[None, None],
airfoil_Cl_models=[None, None],
airfoil_Cp_models=[None, None],
airfoil_alpha_stall_models=[None, None],
)
# We multiply by (-1) since the lift and drag are w.r.t. the flight-dynamics reference frame
total_induced_drag = vlm_outputs.total_drag * -1
total_lift = vlm_outputs.total_lift * -1
print("total lift: ", total_lift.value)
print("total induced drag: ", total_lift.value)
CL_list.append(total_lift / 0.5 / rho / V**2 / S_ref )
CDi_list.append(total_induced_drag / 0.5 / rho / V**2 / S_ref )
return CL_list, CDi_list
Running the script
To run the previously defined functions, we simply call them sequentially. We save the lift and induced drag coefficients and plot them next.
define_base_config(caddee=caddee)
define_conditions(caddee=caddee)
CL_list, CDi_list = define_analysis(caddee=caddee)
Overwriting/updating mesh wing_2_vlm_camber_mesh
Overwriting/updating mesh wing_2_vlm_camber_mesh
Overwriting/updating mesh wing_2_vlm_camber_mesh
Overwriting/updating mesh wing_2_vlm_camber_mesh
Overwriting/updating mesh wing_2_vlm_camber_mesh
/home/marius/Desktop/packages/lsdo_lab/CADDEE_alpha/CADDEE_alpha/core/aircraft/conditions/aircraft_condition.py:264: UserWarning: No mass properties defined; ignore any body rotations in mesh velocities
warnings.warn("No mass properties defined; ignore any body rotations in mesh velocities")
/home/marius/Desktop/packages/lsdo_lab/lsdo_airfoil/lsdo_airfoil/core/airfoil_training.py:250: FutureWarning: You are using `torch.load` with `weights_only=False` (the current default value), which uses the default pickle module implicitly. It is possible to construct malicious pickle data which will execute arbitrary code during unpickling (See https://github.com/pytorch/pytorch/blob/main/SECURITY.md#untrusted-models for more details). In a future release, the default value for `weights_only` will be flipped to `True`. This limits the functions that could be executed during unpickling. Arbitrary objects will no longer be allowed to be loaded via this mode unless they are explicitly allowlisted by the user via `torch.serialization.add_safe_globals`. We recommend you start setting `weights_only=True` for any use case where you don't have full control of the loaded file. Please open an issue on GitHub for any issues related to this experimental feature.
model.load_state_dict(torch.load(f"{data_directory_path}/{quantity}_model", map_location=torch.device("cpu")))
/home/marius/Desktop/packages/lsdo_lab/CSDL_alpha/csdl_alpha/src/operations/tensor/expand.py:184: UserWarning: "action" will have no effect when expanding a scalar.
warnings.warn('"action" will have no effect when expanding a scalar.')
nonlinear solver: bracketed_search converged in 34 iterations.
running pre-processing
solving for circulation strengths
running post-processing
setting up outputs
total lift: [-21433.02716797 -18066.699912 -14665.9932494 -11245.06681367
-7810.27716419 -4364.71058071 -910.24922931 2551.63066253
6019.5728313 9492.24391613 12968.30276646 16446.39222176
19925.13821267 23403.15114145 26879.02794005 30351.35433091
33818.70716414 37279.65680225 40732.76954539 44176.61009168
47609.74402479 51030.74031886 54438.17384985 57830.62790159
61206.69665534 64564.98765138 67904.12421205]
total induced drag: [ 629.92769824 467.57557503 330.27907361 219.09393414 134.49883105
76.75201329 46.02503878 42.44163115 66.08645246 117.00593812
195.2075226 300.65877956 433.28673642 592.97735955 779.57517844
992.88303123 1232.66192459 1498.63100737 1790.46765862 2107.80769091
2450.24566937 2817.33534604 3208.59020839 3623.48414027 4061.45219296
4521.89146339 5004.1620763 ]
running pre-processing
solving for circulation strengths
running post-processing
setting up outputs
total lift: [-25521.39249536 -22047.84751832 -18538.10590522 -15113.61629493
-11761.883358 -8354.98554265 -4912.72860103 -1453.43047683
2015.65934641 5491.74572093 8973.35710734 12459.32953451
15948.53161301 19439.80559953 22931.96252472 26423.78741648
29914.04459794 33401.48168532 36884.83264163 40362.82033767
43834.15890236 47297.55600555 50751.71513541 54195.3378914
57627.12629467 61045.78510882 64450.02416063]
total induced drag: [-25521.39249536 -22047.84751832 -18538.10590522 -15113.61629493
-11761.883358 -8354.98554265 -4912.72860103 -1453.43047683
2015.65934641 5491.74572093 8973.35710734 12459.32953451
15948.53161301 19439.80559953 22931.96252472 26423.78741648
29914.04459794 33401.48168532 36884.83264163 40362.82033767
43834.15890236 47297.55600555 50751.71513541 54195.3378914
57627.12629467 61045.78510882 64450.02416063]
running pre-processing
solving for circulation strengths
running post-processing
setting up outputs
total lift: [-23391.57238266 -19922.41538687 -16424.74195286 -12992.78685425
-9623.39275982 -6203.09538687 -2751.89320426 713.60110956
4187.46207966 7667.57366483 11152.77208307 14642.03500448
18134.30535473 21628.47354157 25123.38862923 28617.86955923
32110.71260277 35600.69608877 39086.58367546 42567.12695029
46041.06776004 49507.14045528 52964.07412487 56410.59484612
59845.42795312 63267.30031683 66674.94262624]
total induced drag: [-23391.57238266 -19922.41538687 -16424.74195286 -12992.78685425
-9623.39275982 -6203.09538687 -2751.89320426 713.60110956
4187.46207966 7667.57366483 11152.77208307 14642.03500448
18134.30535473 21628.47354157 25123.38862923 28617.86955923
32110.71260277 35600.69608877 39086.58367546 42567.12695029
46041.06776004 49507.14045528 52964.07412487 56410.59484612
59845.42795312 63267.30031683 66674.94262624]

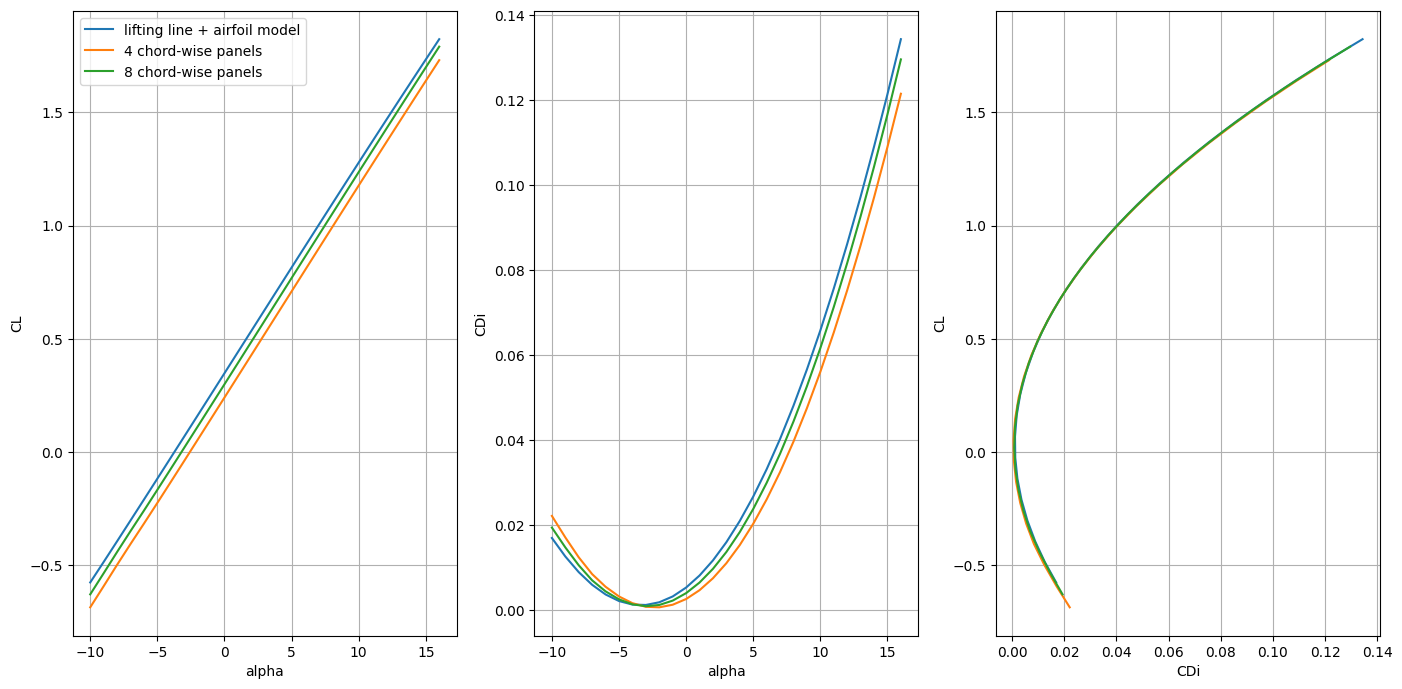

# Plotting the results
fig, axs = plt.subplots(ncols=3, nrows=1, figsize=(14, 7))
pitch = np.linspace(-10, 16, 27)
num_chord_wise = [4, 8, 12, 16, 20]
for i in range(3):
if i == 0:
label = "lifting line + airfoil model"
else:
label = f"{num_chord_wise[i-1]} chord-wise panels"
CL = CL_list[i].value
CDi = CDi_list[i].value
axs[0].plot(pitch, CL, label=label)
axs[0].grid()
axs[0].set_xlabel("alpha")
axs[0].set_ylabel("CL")
axs[0].legend()
axs[1].plot(pitch, CDi)
axs[1].grid()
axs[1].set_xlabel("alpha")
axs[1].set_ylabel("CDi")
axs[2].plot(CDi, CL)
axs[2].grid()
axs[2].set_xlabel("CDi")
axs[2].set_ylabel("CL")
plt.tight_layout()
plt.show()
